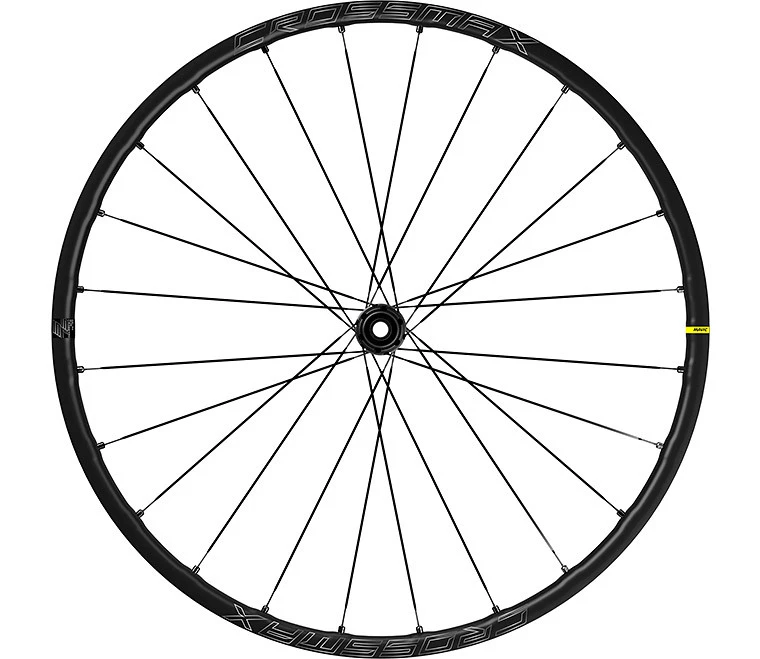

29″ Mavic Crossmax SLS 29

CROSSMAX SL S 29
For all-around cross-country performance, including faster climbing and descending, this premium 29” alloy wheelset delivers stiffness, durability and the easiest tubeless system available today.

KEY BENEFITS

Best in its class alloy XC wheelset
ISM4D rim machining reduces weight to close the gap to carbon rims without compromising strength. Lighter weight rims result in super low inertia and instant acceleration.

Increased traction and durability
25mm wide hookless rim profile optimized for lower tire pressures, resulting in improved grip in all conditions. Optimized for modern XC tubeless tires from 2.1 to 2.30″. Black Shield treatment protects rims against impacts and scratches.

Most user-friendly tubeless system
Fore technology fully sealed rim with no rim tape makes it easy to mount and change tubeless tires. Leaving the upper rim bridge intact boosts the stiffness and durability of the rim.

Cross-country racing puts a multitude of demands on a wheelset. You want one that helps you climb with speed and efficiency, descend with greater control, and track through the rough stuff with smooth confidence. The Crossmax SL S is a lightweight alloy wheel that does it all.
Engineered with a specific rim profile that combines a 25mm internal width and our patented ISM4D technology, this wheelset can boost the performance of your bike with a price that’s accessible compared to carbon wheel options. The ISM4D process machines the rim in the areas with less stress to reduce weight without compromising strength. The rim also features our Black Shield technology, which protects against scratches and dents so you can charge hard through rock gardens and rough singletrack.
The rims are made with our patented Fore technology with a fully sealed upper rim bridge that eliminates the need for rim tape. This saves 30 grams per wheel, not to mention the hassles associated with tape when setting up tubeless tires. New Infinity hub is lighter and feature a new spoke lacing which increases stiffness for better power transfer, and the Instant Drive 360 freewheel with a double ratchet provides fast engagement. The rear hub is compatible with Shimano HG9, Micro Spline and SRAM XD driver bodies. The Crossmax SL S is available with 6-bolt or center lock brake rotors in 29” only. It’s compatible with a 15×110 front axle and 12×148 rear, and comes with valves, replacement spokes and accessories.

SPECIFICATIONS

Compatibility
Front axle: 15×110 Boost thru axle
Rear axle: 12×148 Boost thru axle
Freewheel: Shimano HG9, XD or Micro Spline

Compatible Adapters and freewheel bodies
ID360 Shimano Micro Spline alloy freewheel body (LV3990100)
Boost : Torque Caps (LV2374400)
ID360 Sram XD freewheel body (LV3740100)
ID360 Shimano HG9 alloy freewheel body (LV3780100)

Weight
Pair 29″ without tyre: 1595 grams
Front 29″ without tyre: 735 grams
Rear 29″ without tyre: 860 grams

Hubs
Infinity Hubs
Axles: Front 15X110 Boost ; Rear 12X148 Boost
Hub available with 6-bolt or center lock (R) brake rotors
Instant Drive 360 freewheel technology

Intended Use
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels doesnn’t exceed 120kg, bike included
ASTM CATEGORY 3 : CROSS COUNTRY
Recommended tyre sizes: 50mm to 76mm (2.0″ to 3.0″)

Rims
Asymmetrical rim design
Black Shield treatment (protects your rim against impacts and scratches)
Hookless profile
Internal width: 25 mm
ETRTO size 29″: 622x25TSS
Weight reduction: ISM 4D
Fore tapeless tubeless technology
SUP welding technology
Material: S6000 Aluminum
Tire: UST Tubeless and tubetype
Material: Maxtal

Spokes
Lacing: front and rear crossed 2, contactless
Shape: straight pull, flat, double butted
Material: steel
Nipples: Fore integrated aluminum
Count: 24 front and rear

Versions
Freewheel: SRAM XD, Shimano HG9, Shimano Micro-Spline
Hub width : Boost only (front 110, rear 148)
Disc standard : 6 Bolts or Center Lock (R)

DELIVERED WITH
Fore adjustment wrench
2 replacement spokes with each wheel
Multifonction adjustment wrench (delivered with rear wheel)
UST valve and accessories
